Product Center

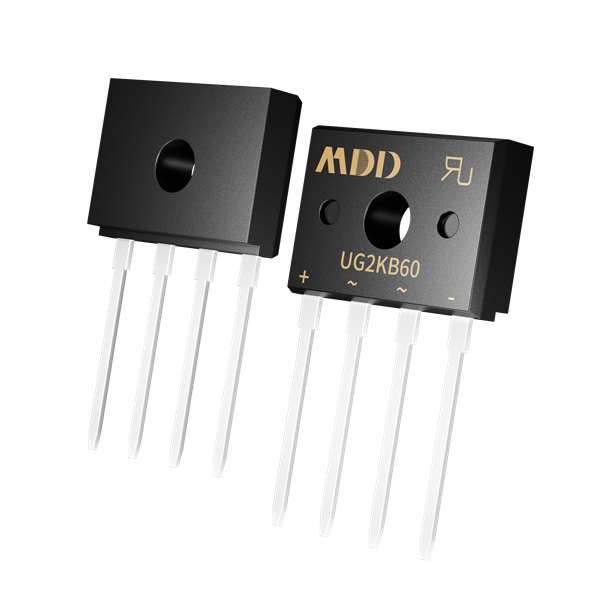

UG2KB60

Status: Active

Package Type:

D3K

Packing Info:

500/盒 5K/箱

Category:

Bridge rectifiers

Part Number	Product status	Number of Functions	Max.Reverse Voltage V_RRM (V)	Max.Aver. Fwd.Current l(AV)	Peak Fwd. Surge CurrentT=8.3ms I_FSM(A)	Max.Fwd.Voltage TA=25℃ V_F(V)	Max.Fwd.Voltage TA=25℃ l_F(A)	Maximum Reverse Current TA=25℃ I_R(μA)	Maximum Recovery Time Trr（ns）	Package	Junction Temperature
UG2KB60	Active	1-Phase Bridge	600	2	50	1.1	2	5	—	D3K	-55 ~ +150

Part Number

Product status

Number of
Functions

Max.Reverse Voltage
V_RRM (V)

Max.Aver. Fwd.Current
l(AV)

Peak Fwd. Surge CurrentT=8.3ms
I_FSM(A)

Max.Fwd.Voltage TA=25℃
V_F(V)

Max.Fwd.Voltage TA=25℃
l_F(A)

Maximum Reverse Current TA=25℃
I_R(μA)

Maximum Recovery Time
Trr（ns）

Package

Junction Temperature

UG2KB60

Active

1-Phase Bridge

600

1.1

—

D3K

-55 ~ +150

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
UG2KB60	D3K	D3K		500/盒 5K/箱

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

UG2KB60

D3K

500/盒 5K/箱
