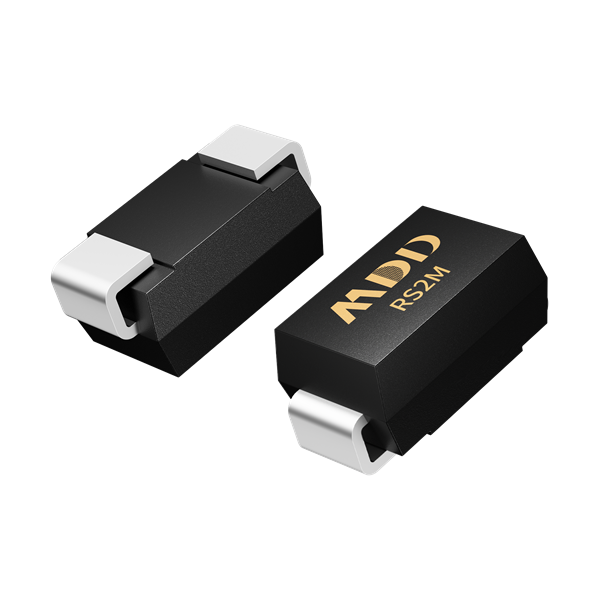

RS2M/RS2MB

RS2M/RS2MB

Status: active
Package Type:
SMA/SMB
Packing Info:
5K/盘 80K/箱
Category:
Fast recovery rectifiers
Product Detail
Part Number Product status Number of
Functions
Max.Reverse Voltage
VRRM (V)
Max.Aver. Fwd.Current
l(AV)
Peak Fwd. Surge CurrentT=8.3ms
IFSM(A)
Max.Fwd.Voltage TA=25℃
VF(V)
Max.Fwd.Voltage TA=25℃
lF(A)
Maximum Reverse Current TA=25℃
IR(μA)
Maximum Recovery Time
Trr(ns)
Package Junction Temperature
RS2M/RS2MB Active Single 1000 2 50/60 1.3 2 5 500 SMA/SMB 150℃
Packing Information
Part Number Package Type Packing Specification Marking Code Packing Info
RS2M/RS2MB SMA/SMB SMA/SMB 5K/盘 80K/箱
