| Part Number | Product status | Number of Functions |
Max.Reverse Voltage VRRM (V) |
Max.Aver. Fwd.Current l(AV) |
Peak Fwd. Surge CurrentT=8.3ms IFSM(A) |
Max.Fwd.Voltage TA=25℃ VF(V) |
Max.Fwd.Voltage TA=25℃ lF(A) |
Maximum Reverse Current TA=25℃ IR(μA) |
Maximum Recovery Time Trr(ns) |
Package | Junction Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|

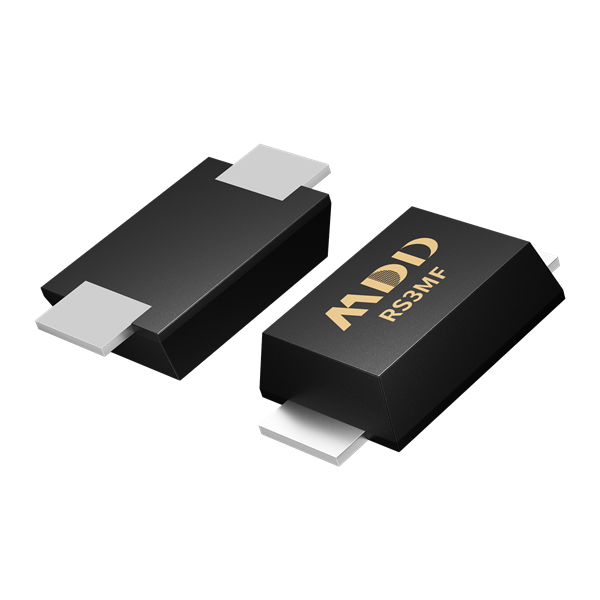

| RS3MF/RS3MBF | Active | Single | 100 | 3 | 80 | 1.3 | 3 | 5 | 500 | SMAF/SMBF | 150℃ |
