Product Center

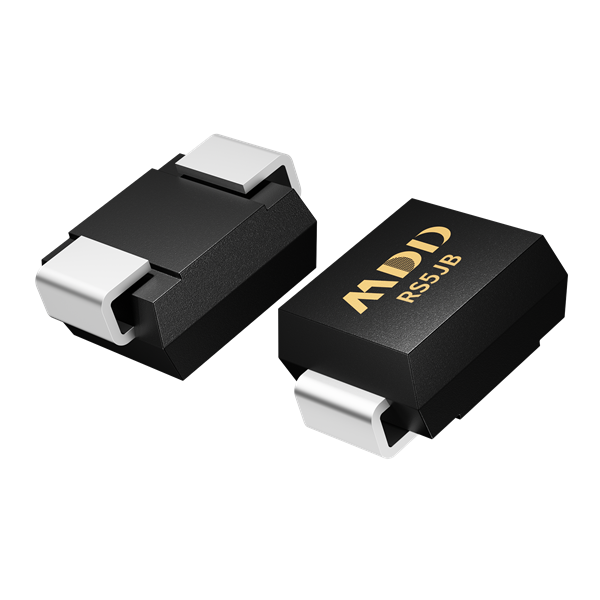

RS5JB/RS5JC

Status: active

Package Type:

SMB/SMC

Packing Info:

3K/盘, 48K/箱

Category:

Fast recovery rectifiers

Part Number	Product status	Number of Functions	Max.Reverse Voltage V_RRM (V)	Max.Aver. Fwd.Current l(AV)	Peak Fwd. Surge CurrentT=8.3ms I_FSM(A)	Max.Fwd.Voltage TA=25℃ V_F(V)	Max.Fwd.Voltage TA=25℃ l_F(A)	Maximum Reverse Current TA=25℃ I_R(μA)	Maximum Recovery Time Trr（ns）	Package	Junction Temperature
RS5JB/RS5JC	Active	Single	600	5	135/120	1.3	5	10.0/5.0	250	SMB/SMC	150℃

Part Number

Product status

Number of
Functions

Max.Reverse Voltage
V_RRM (V)

Max.Aver. Fwd.Current
l(AV)

Peak Fwd. Surge CurrentT=8.3ms
I_FSM(A)

Max.Fwd.Voltage TA=25℃
V_F(V)

Max.Fwd.Voltage TA=25℃
l_F(A)

Maximum Reverse Current TA=25℃
I_R(μA)

Maximum Recovery Time
Trr（ns）

Package

Junction Temperature

RS5JB/RS5JC

Active

Single

600

135/120

1.3

10.0/5.0

250

SMB/SMC

150℃

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
RS5JB/RS5JC	SMB/SMC	SMB/SMC		3K/盘, 48K/箱

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

RS5JB/RS5JC

SMB/SMC

3K/盘, 48K/箱
