Product Center

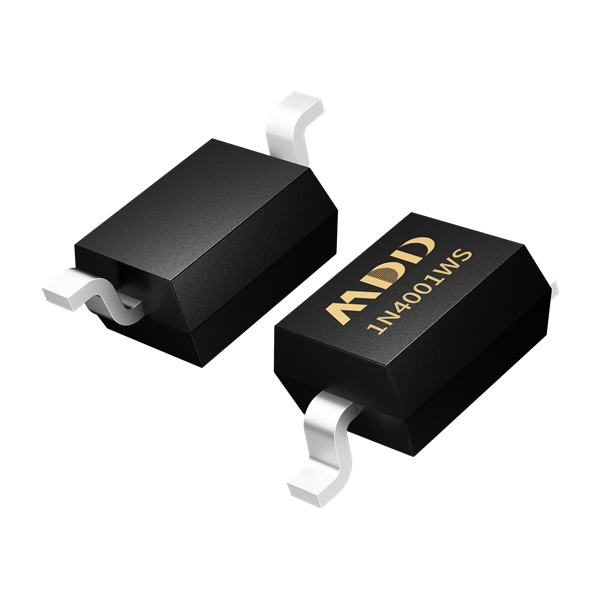

1N4001WS

Status: Active

Package Type:

SOD-323

Packing Info:

3K/盘，180K/箱

Category:

General rectifiers

Part Number	Product status	Number of Functions	Max.Reverse Voltage V_RRM (V)	Max.Aver. Fwd.Current l(AV)	Max.Fwd.Voltage TA=25℃ V_F(V)	Max.Fwd.Voltage TA=25℃ l_F(A)	Maximum Reverse Current TA=25℃ I_R(μA)	Package	Junction Temperature	Peak Fwd. Surge Current I_FSM(A)
1N4001WS	Active	Single	50	1	1.1	1	5	SOD-323	-55 ~ +150	25

Part Number

Product status

Number of
Functions

Max.Reverse Voltage
V_RRM (V)

Max.Aver. Fwd.Current
l(AV)

Max.Fwd.Voltage TA=25℃
V_F(V)

Max.Fwd.Voltage TA=25℃
l_F(A)

Maximum Reverse Current TA=25℃
I_R(μA)

Package

Junction Temperature

Peak Fwd. Surge Current
I_FSM(A)

1N4001WS

Active

Single

1.1

SOD-323

-55 ~ +150

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
1N4001WS	SOD-323	SOD-323		3K/盘，180K/箱

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

1N4001WS

SOD-323

3K/盘，180K/箱
