Product Center

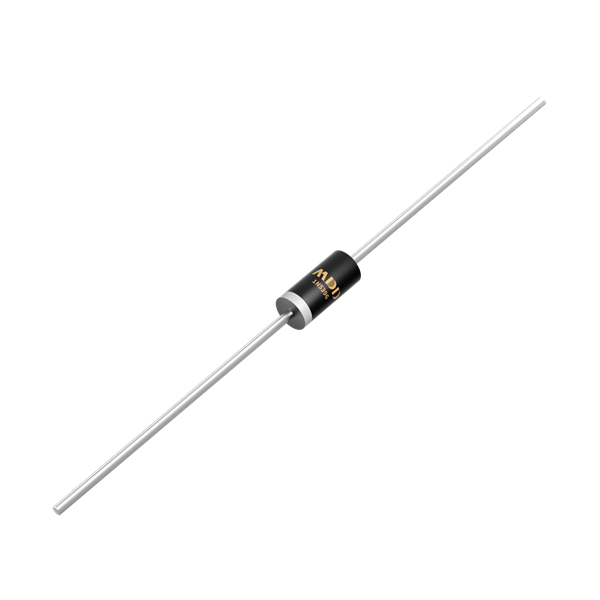

1N5396

Status: Active

Package Type:

DO-15

Packing Info:

2.5K/盒 25K/箱

Category:

General rectifiers

Part Number	Product status	Number of Functions	Max.Reverse Voltage V_RRM (V)	Max.Aver. Fwd.Current l(AV)	Max.Fwd.Voltage TA=25℃ V_F(V)	Max.Fwd.Voltage TA=25℃ l_F(A)	Maximum Reverse Current TA=25℃ I_R(μA)	Package	Junction Temperature	Peak Fwd. Surge Current I_FSM(A)
1N5396	Active	Single	500	1.5	1.4	1.5	5	DO-15	-55 ~ +150	50

Part Number

Product status

Number of
Functions

Max.Reverse Voltage
V_RRM (V)

Max.Aver. Fwd.Current
l(AV)

Max.Fwd.Voltage TA=25℃
V_F(V)

Max.Fwd.Voltage TA=25℃
l_F(A)

Maximum Reverse Current TA=25℃
I_R(μA)

Package

Junction Temperature

Peak Fwd. Surge Current
I_FSM(A)

1N5396

Active

Single

500

1.5

1.4

1.5

DO-15

-55 ~ +150

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
1N5396	DO-15	DO-15		2.5K/盒 25K/箱

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

1N5396

DO-15

2.5K/盒 25K/箱
