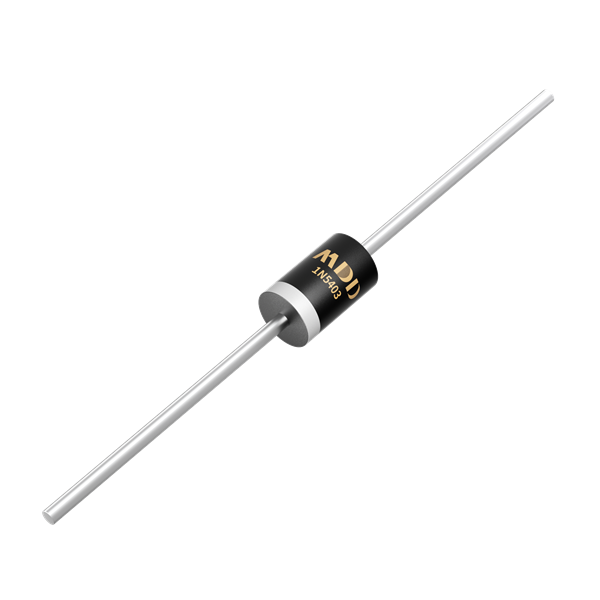

1N5403/1N5403G

Status: Active

Package Type:

DO-201AD

Packing Info:

1K/盘 10K/箱

Category:

General rectifiers

Part Number	Product status	Number of Functions	Max.Reverse Voltage V_RRM (V)	Max.Aver. Fwd.Current l(AV)	Max.Fwd.Voltage TA=25℃ V_F(V)	Max.Fwd.Voltage TA=25℃ l_F(A)	Maximum Reverse Current TA=25℃ I_R(μA)	Package	Junction Temperature	Peak Fwd. Surge Current I_FSM(A)
1N5403/1N5403G	Active	Single	300	3	1	3	5	DO-201AD	-65 ~ +175	150

Part Number

Product status

Number of
Functions

Max.Reverse Voltage
V_RRM (V)

Max.Aver. Fwd.Current
l(AV)

Max.Fwd.Voltage TA=25℃
V_F(V)

Max.Fwd.Voltage TA=25℃
l_F(A)

Maximum Reverse Current TA=25℃
I_R(μA)

Package

Junction Temperature

Peak Fwd. Surge Current
I_FSM(A)

1N5403/1N5403G

Active

Single

300

DO-201AD

-65 ~ +175

150

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
1N5403/1N5403G	DO-201AD	DO-201AD		1K/盘 10K/箱

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

1N5403/1N5403G

DO-201AD

1K/盘 10K/箱
