Product Center

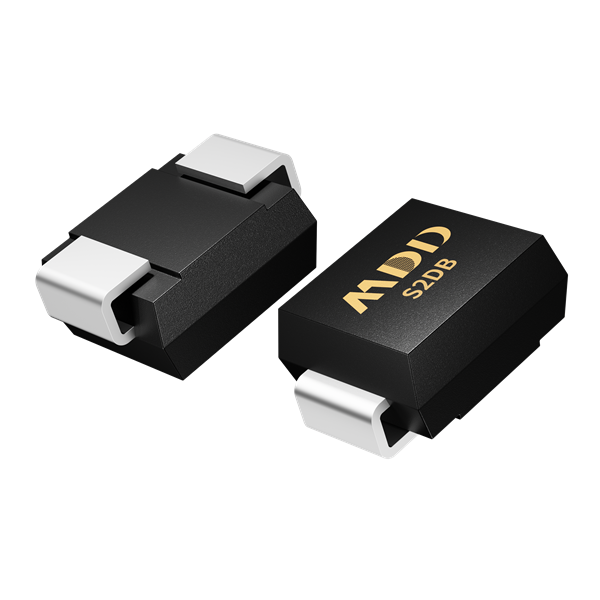

S2DB

Status:

Package Type:

SMB

Packing Info:

3K/盘, 48K/箱

Category:

General rectifiers

Part Number	Product status	Number of Functions	Max.Reverse Voltage V_RRM (V)	Max.Aver. Fwd.Current l(AV)	Max.Fwd.Voltage TA=25℃ V_F(V)	Max.Fwd.Voltage TA=25℃ l_F(A)	Maximum Reverse Current TA=25℃ I_R(μA)	Package	Junction Temperature	Peak Fwd. Surge Current I_FSM(A)
S2DB			200	2	1.1	2	5	SMB	推荐用S2MB替代	60

Part Number

Product status

Number of
Functions

Max.Reverse Voltage
V_RRM (V)

Max.Aver. Fwd.Current
l(AV)

Max.Fwd.Voltage TA=25℃
V_F(V)

Max.Fwd.Voltage TA=25℃
l_F(A)

Maximum Reverse Current TA=25℃
I_R(μA)

Package

Junction Temperature

Peak Fwd. Surge Current
I_FSM(A)

S2DB

200

1.1

SMB

推荐用S2MB替代

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
S2DB	SMB	SMB		3K/盘, 48K/箱

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

S2DB

SMB

3K/盘, 48K/箱
