Product Center

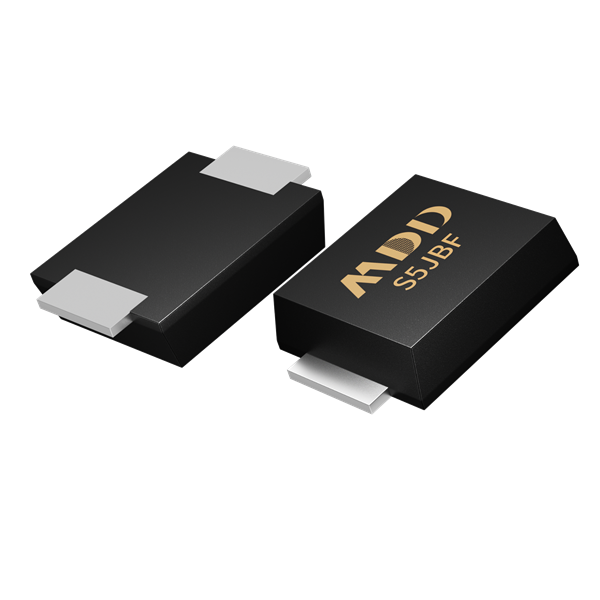

S5JBF

Status: Active

Package Type:

SMBF

Packing Info:

5K/盘 80K/箱

Category:

General rectifiers

Part Number	Product status	Number of Functions	Max.Reverse Voltage V_RRM (V)	Max.Aver. Fwd.Current l(AV)	Max.Fwd.Voltage TA=25℃ V_F(V)	Max.Fwd.Voltage TA=25℃ l_F(A)	Maximum Reverse Current TA=25℃ I_R(μA)	Package	Junction Temperature	Peak Fwd. Surge Current I_FSM(A)
S5JBF	Active	Single	600	5	1.1	5	5	SMBF	-55 ~ +150	125

Part Number

Product status

Number of
Functions

Max.Reverse Voltage
V_RRM (V)

Max.Aver. Fwd.Current
l(AV)

Max.Fwd.Voltage TA=25℃
V_F(V)

Max.Fwd.Voltage TA=25℃
l_F(A)

Maximum Reverse Current TA=25℃
I_R(μA)

Package

Junction Temperature

Peak Fwd. Surge Current
I_FSM(A)

S5JBF

Active

Single

600

1.1

SMBF

-55 ~ +150

125

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
S5JBF	SMBF	SMBF		5K/盘 80K/箱

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

S5JBF

SMBF

5K/盘 80K/箱
