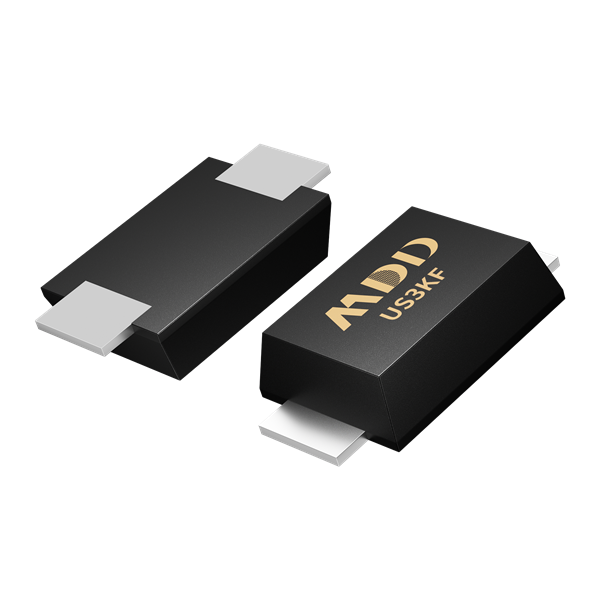

US3KF/US3KBF

US3KF/US3KBF

Status: active
Package Type:
SMAF/SMBF
Packing Info:
3K/盘,120K/箱
Category:
High efficiency rectifiers
Product Detail
Part Number Product status Number of
Functions
Max.Reverse Voltage
VRRM (V)
Max.Aver. Fwd.Current
l(AV)
Peak Fwd. Surge CurrentT=8.3ms
IFSM(A)
Max.Fwd.Voltage TA=25℃
VF(V)
Max.Fwd.Voltage TA=25℃
lF(A)
Maximum Reverse Current TA=25℃
IR(μA)
Maximum Recovery Time
Trr(ns)
Package Junction Temperature
US3KF/US3KBF Active Single 800 3 100 1.70/1.60 3 5 75 SMAF/SMBF 150℃
Packing Information
Part Number Package Type Packing Specification Marking Code Packing Info
US3KF/US3KBF SMAF/SMBF SMAF/SMBF 3K/盘,120K/箱
