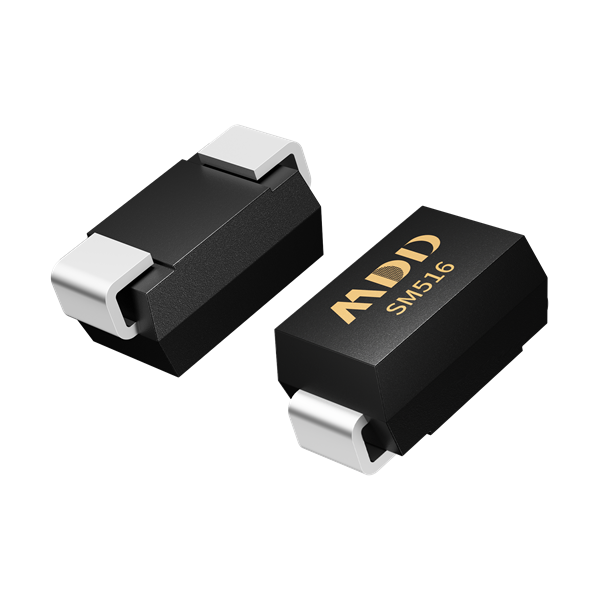

SM516

Status: Active

Package Type:

SMA

Packing Info:

7K/盘,120K/箱

Category:

High voltage rectifiers

Part Number	Product status	Number of Functions	Max.Reverse Voltage V_RRM (V)	Max.Aver. Fwd.Current l(AV)	Peak Fwd. Surge CurrentT=8.3ms I_FSM(A)	Max.Fwd.Voltage TA=25℃ V_F(V)	Max.Fwd.Voltage TA=25℃ l_F(A)	Maximum Reverse Current TA=25℃ I_R(μA)	Maximum Recovery Time Trr（ns）	Package	Junction Temperature
SM516	Active	Single	1600	1.5	50	1.15	1.5	5	—	SMA	-55~150

Part Number

Product status

Number of
Functions

Max.Reverse Voltage
V_RRM (V)

Max.Aver. Fwd.Current
l(AV)

Peak Fwd. Surge CurrentT=8.3ms
I_FSM(A)

Max.Fwd.Voltage TA=25℃
V_F(V)

Max.Fwd.Voltage TA=25℃
l_F(A)

Maximum Reverse Current TA=25℃
I_R(μA)

Maximum Recovery Time
Trr（ns）

Package

Junction Temperature

SM516

Active

Single

1600

1.5

1.15

1.5

—

SMA

-55~150

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
SM516	SMA	SMA		7K/盘,120K/箱

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

SM516

SMA

7K/盘,120K/箱
