Product Center

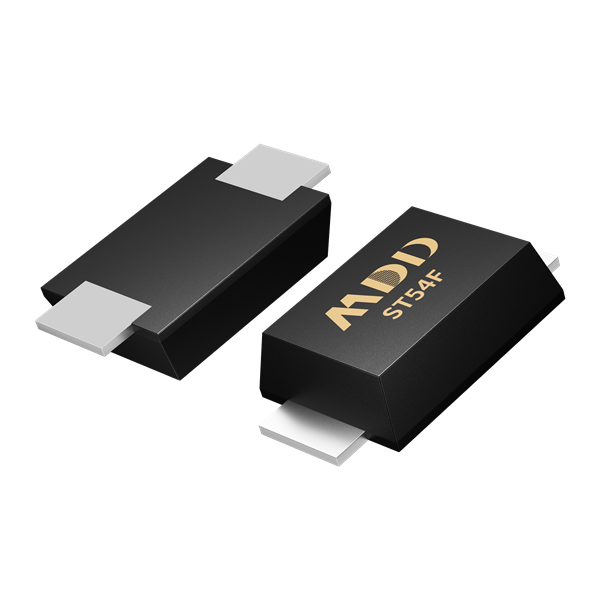

ST54F

Status: Active

Package Type:

SMAF

Packing Info:

3K/盘，120K/箱

Category:

Low VF schottky rectifiers

Part Number	Product status	Number of Functions	Max.Reverse Voltage V_RRM (V)	Max.Aver. Fwd.Current l(AV)	Max.Fwd.Voltage TA=25℃ V_F(V)	Max.Fwd.Voltage TA=25℃ l_F(A)	Maximum Reverse Current TA=25℃ I_R(μA)	Package	Junction Temperature	Peak Fwd. Surge Current I_FSM(A)
ST54F	Active	Single	40	5	0.45	5	100	SMAF	-55~125	100

Part Number

Product status

Number of
Functions

Max.Reverse Voltage
V_RRM (V)

Max.Aver. Fwd.Current
l(AV)

Max.Fwd.Voltage TA=25℃
V_F(V)

Max.Fwd.Voltage TA=25℃
l_F(A)

Maximum Reverse Current TA=25℃
I_R(μA)

Package

Junction Temperature

Peak Fwd. Surge Current
I_FSM(A)

ST54F

Active

Single

0.45

100

SMAF

-55~125

100

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
ST54F	SMAF	SMAF		3K/盘，120K/箱

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

ST54F

SMAF

3K/盘，120K/箱
