Product Center

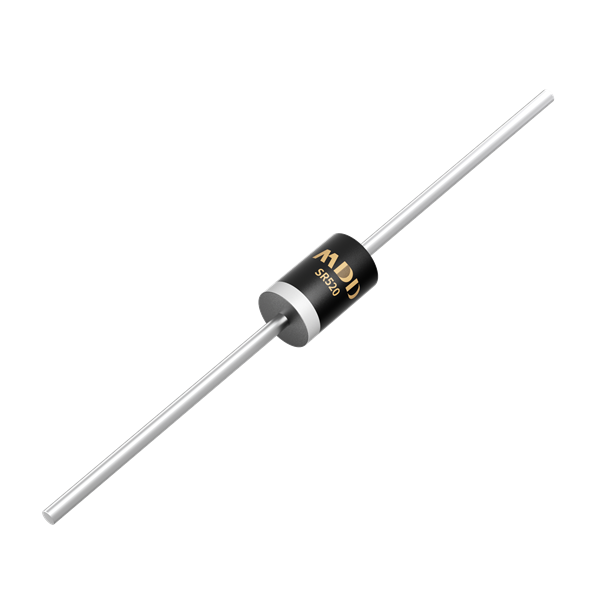

SR520

Status: Active

Package Type:

DO-201AD

Packing Info:

1K/盘 10K/箱

Category:

Schottky barrier rectifiers

Part Number	Product status	Number of Functions	Max.Reverse Voltage V_RRM (V)	Max.Aver. Fwd.Current l(AV)	Max.Fwd.Voltage TA=25℃ V_F(V)	Max.Fwd.Voltage TA=25℃ l_F(A)	Maximum Reverse Current TA=25℃ I_R(μA)	Package	Junction Temperature	Peak Fwd. Surge Current I_FSM(A)	Configuration
SR520	Active	Single	20	5	0.55	5	500	DO-201AD	-50~125	150	/

Part Number

Product status

Number of
Functions

Max.Reverse Voltage
V_RRM (V)

Max.Aver. Fwd.Current
l(AV)

Max.Fwd.Voltage TA=25℃
V_F(V)

Max.Fwd.Voltage TA=25℃
l_F(A)

Maximum Reverse Current TA=25℃
I_R(μA)

Package

Junction Temperature

Peak Fwd. Surge Current
I_FSM(A)

Configuration

SR520

Active

Single

0.55

500

DO-201AD

-50~125

150

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
SR520	DO-201AD	DO-201AD		1K/盘 10K/箱

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

SR520

DO-201AD

1K/盘 10K/箱
