Product Center

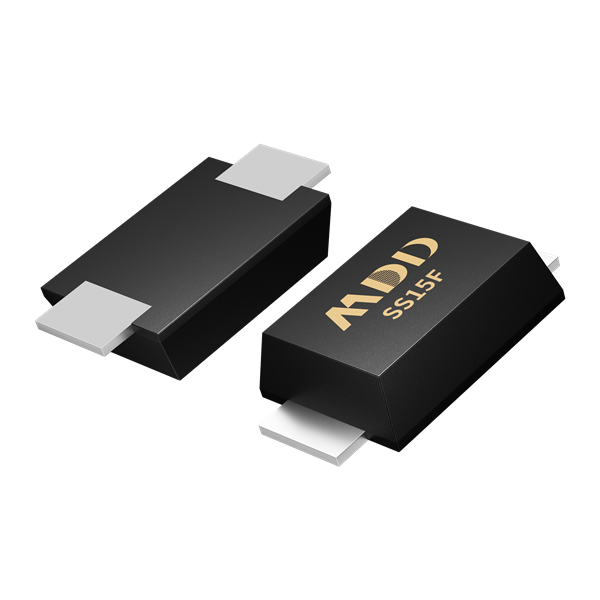

SS15F

Status: Active

Package Type:

SMAF

Packing Info:

#N/A

Category:

Schottky barrier rectifiers

Part Number	Product status	Number of Functions	Max.Reverse Voltage V_RRM (V)	Max.Aver. Fwd.Current l(AV)	Max.Fwd.Voltage TA=25℃ V_F(V)	Max.Fwd.Voltage TA=25℃ l_F(A)	Maximum Reverse Current TA=25℃ I_R(μA)	Package	Junction Temperature	Peak Fwd. Surge Current I_FSM(A)	Configuration
SS15F	Active	Single	50	1	0.7	1	300	SMAF	-55~125	25	/

Part Number

Product status

Number of
Functions

Max.Reverse Voltage
V_RRM (V)

Max.Aver. Fwd.Current
l(AV)

Max.Fwd.Voltage TA=25℃
V_F(V)

Max.Fwd.Voltage TA=25℃
l_F(A)

Maximum Reverse Current TA=25℃
I_R(μA)

Package

Junction Temperature

Peak Fwd. Surge Current
I_FSM(A)

Configuration

SS15F

Active

Single

0.7

300

SMAF

-55~125

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
SS15F	SMAF	SMAF		#N/A

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

SS15F

SMAF

#N/A
