Product Center

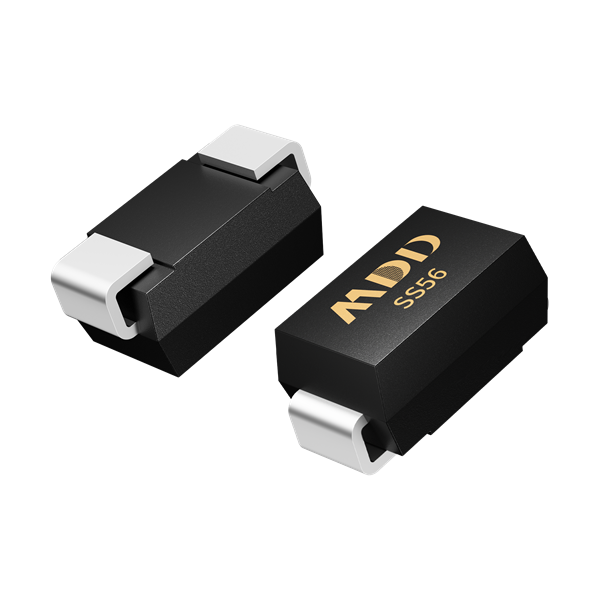

SS56/SS56B/SS56C

Status: Active

Package Type:

SMA/SMB/SMC

Packing Info:

5K/盘 80K/箱

Category:

Schottky barrier rectifiers

Part Number	Product status	Number of Functions	Max.Reverse Voltage V_RRM (V)	Max.Aver. Fwd.Current l(AV)	Max.Fwd.Voltage TA=25℃ V_F(V)	Max.Fwd.Voltage TA=25℃ l_F(A)	Maximum Reverse Current TA=25℃ I_R(μA)	Package	Junction Temperature	Peak Fwd. Surge Current I_FSM(A)	Configuration
SS56/SS56B/SS56C	Active	Single	60	5	0.7	5	1000/300	SMA/SMB/SMC	-55~150/-50~150/-55~150	120/150/175	/

Part Number

Product status

Number of
Functions

Max.Reverse Voltage
V_RRM (V)

Max.Aver. Fwd.Current
l(AV)

Max.Fwd.Voltage TA=25℃
V_F(V)

Max.Fwd.Voltage TA=25℃
l_F(A)

Maximum Reverse Current TA=25℃
I_R(μA)

Package

Junction Temperature

Peak Fwd. Surge Current
I_FSM(A)

Configuration

SS56/SS56B/SS56C

Active

Single

0.7

1000/300

SMA/SMB/SMC

-55~150/-50~150/-55~150

120/150/175

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
SS56/SS56B/SS56C	SMA/SMB/SMC	SMA/SMB/SMC		5K/盘 80K/箱

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

SS56/SS56B/SS56C

SMA/SMB/SMC

5K/盘 80K/箱
