Product Detail

Part Number	Product status	Number of Functions	Max.Reverse Voltage V_RRM (V)	Max.Aver. Fwd.Current l(AV)	Max.Fwd.Voltage TA=25℃ V_F(V)	Max.Fwd.Voltage TA=25℃ l_F(A)	Maximum Reverse Current TA=25℃ I_R(μA)	Maximum Recovery Time Trr（ns）	Package	Junction Temperature	Peak Fwd. Surge Current I_FSM(A)	Configuration	Power dissipation PD(mW)	Max.Aver. Rect.Current lF(mA)	Max. Reverse Voltage VRM (V)	Max. Fwd. Voltage TA=25℃ VF(V)	Max. Fwd. Voltage TA=25℃ lF(mA)	Marking
B16WS	Active	Single	60	1	0.7	1	100	-	SOD-323	-175	25	/	400	1000	60	0.7	1000	B16S

Packing Information

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
B16WS	SOD-323	SOD-323		3K/盘，180K/箱

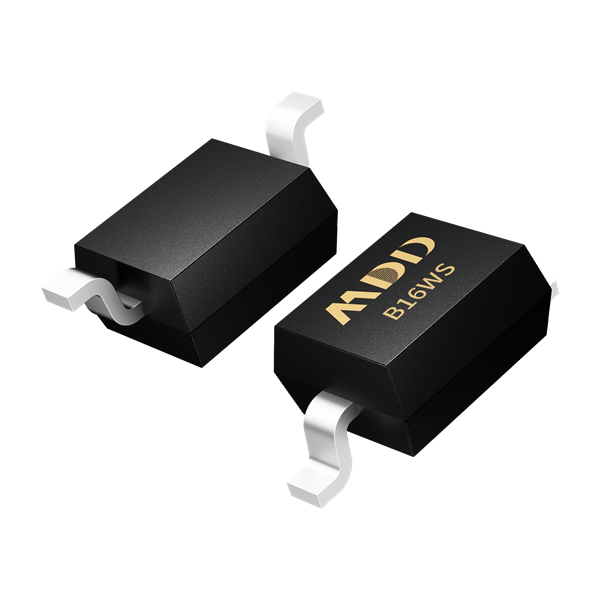

B16WS
