Product Center

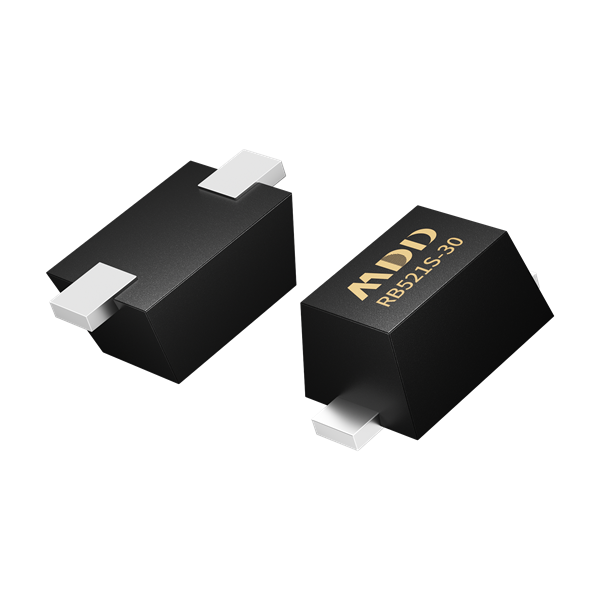

RB521S-30

Status: Active

Package Type:

SOD-523

Packing Info:

3K/盘，180K/箱

Category:

Small signal Schottky diodes

Part Number	Product status	Number of Functions	Maximum Reverse Current TA=25℃ I_R(μA)	Maximum Recovery Time Trr（ns）	Package	Junction Temperature	Power dissipation PD(mW)	Max.Aver. Rect.Current lF(mA)	Max. Reverse Voltage VRM (V)	Max. Fwd. Voltage TA=25℃ VF(V)	Max. Fwd. Voltage TA=25℃ lF(mA)	Marking
RB521S-30	Active	Single	30	-	SOD-523	-165	150	200	30	0.5	200	C

Part Number

Product status

Number of
Functions

Maximum Reverse Current TA=25℃
I_R(μA)

Maximum Recovery Time
Trr（ns）

Package

Junction Temperature

Power dissipation
PD(mW)

Max.Aver. Rect.Current
lF(mA)

Max. Reverse Voltage
VRM (V)

Max. Fwd. Voltage TA=25℃
VF(V)

Max. Fwd. Voltage TA=25℃
lF(mA)

Marking

RB521S-30

Active

Single

SOD-523

-165

150

200

0.5

200

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
RB521S-30	SOD-523	SOD-523		3K/盘，180K/箱

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

RB521S-30

SOD-523

3K/盘，180K/箱
