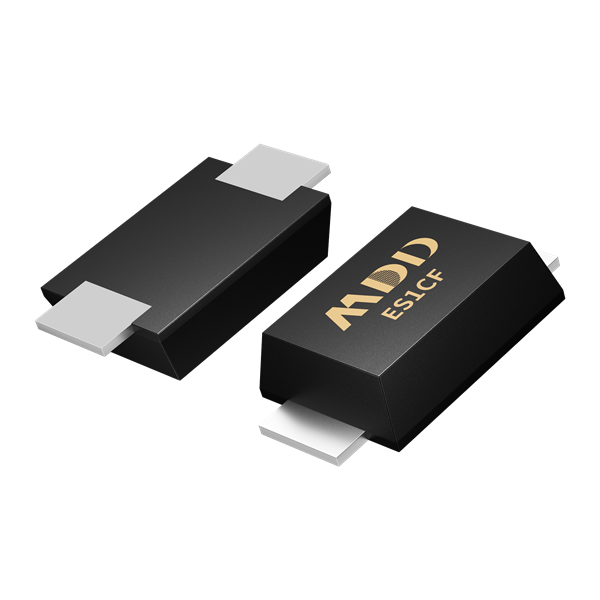

ES1CF

ES1CF

Status: active
Package Type:
SMAF
Packing Info:
3K/盘,120K/箱
Category:
Ultra fast recovery rectifiers
Product Detail
Part Number Product status Number of
Functions
Max.Reverse Voltage
VRRM (V)
Max.Aver. Fwd.Current
l(AV)
Peak Fwd. Surge CurrentT=8.3ms
IFSM(A)
Max.Fwd.Voltage TA=25℃
VF(V)
Max.Fwd.Voltage TA=25℃
lF(A)
Maximum Reverse Current TA=25℃
IR(μA)
Maximum Recovery Time
Trr(ns)
Package Junction Temperature
ES1CF Active Single 150 1 30 0.95 1 5 35 SMAF 150℃
Packing Information
Part Number Package Type Packing Specification Marking Code Packing Info
ES1CF SMAF SMAF 3K/盘,120K/箱
