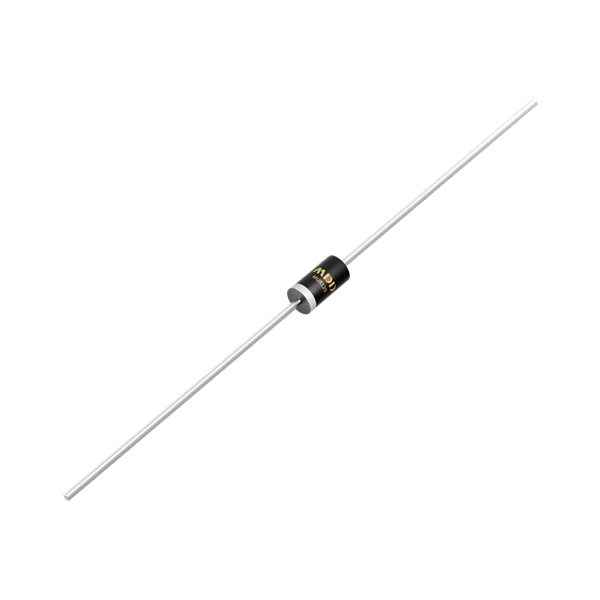

MUR120

Status: active

Package Type:

DO-41/DO-15

Packing Info:

1K/盒 50K/箱

Category:

Ultra fast recovery rectifiers

Part Number	Product status	Number of Functions	Max.Reverse Voltage V_RRM (V)	Max.Aver. Fwd.Current l(AV)	Peak Fwd. Surge CurrentT=8.3ms I_FSM(A)	Max.Fwd.Voltage TA=25℃ V_F(V)	Max.Fwd.Voltage TA=25℃ l_F(A)	Maximum Reverse Current TA=25℃ I_R(μA)	Maximum Recovery Time Trr（ns）	Package	Junction Temperature
MUR120	Active	Single	200	1	35	0.875	1	2	25	DO-41/DO-15	175℃

Part Number

Product status

Number of
Functions

Max.Reverse Voltage
V_RRM (V)

Max.Aver. Fwd.Current
l(AV)

Peak Fwd. Surge CurrentT=8.3ms
I_FSM(A)

Max.Fwd.Voltage TA=25℃
V_F(V)

Max.Fwd.Voltage TA=25℃
l_F(A)

Maximum Reverse Current TA=25℃
I_R(μA)

Maximum Recovery Time
Trr（ns）

Package

Junction Temperature

MUR120

Active

Single

200

0.875

DO-41/DO-15

175℃

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
MUR120	DO-41/DO-15	DO-41/DO-15		1K/盒 50K/箱

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

MUR120

DO-41/DO-15

1K/盒 50K/箱
