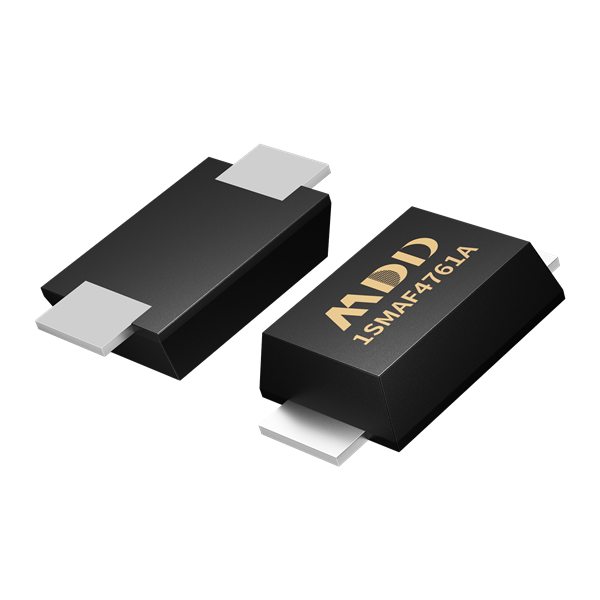

1SMAF4761A

Status: Active

Package Type:

SMAF

Packing Info:

3K/盘，120K/箱

Category:

Zener diodes

Part Number	Product status	Number of Functions	Package	Junction Temperature	Zener voltage VZ(V)	Zener voltage IZT(mA)	Dynamic resistance ZZT(Ω)	Maximum reverse leakage current TA=25℃ IR(μA)	Maximum reverse current IZM(mA)	Power dissipation PD(mW)	Tolerance	Maximum reverse leakage current TA=25℃ VR(V)
1SMAF4761A	Active	Single	SMAF	-205	75	3.3	175	1	12	1000	±5%	56

Part Number

Product status

Number of
Functions

Package

Junction Temperature

Zener voltage
VZ(V)

Zener voltage
IZT(mA)

Dynamic resistance
ZZT(Ω)

Maximum reverse leakage current
TA=25℃
IR(μA)

Maximum reverse current
IZM(mA)

Power dissipation
PD(mW)

Tolerance

Maximum reverse leakage current
TA=25℃
VR(V)

1SMAF4761A

Active

Single

SMAF

-205

3.3

175

1000

±5%

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
1SMAF4761A	SMAF	SMAF		3K/盘，120K/箱

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

1SMAF4761A

SMAF

3K/盘，120K/箱
