Product Center

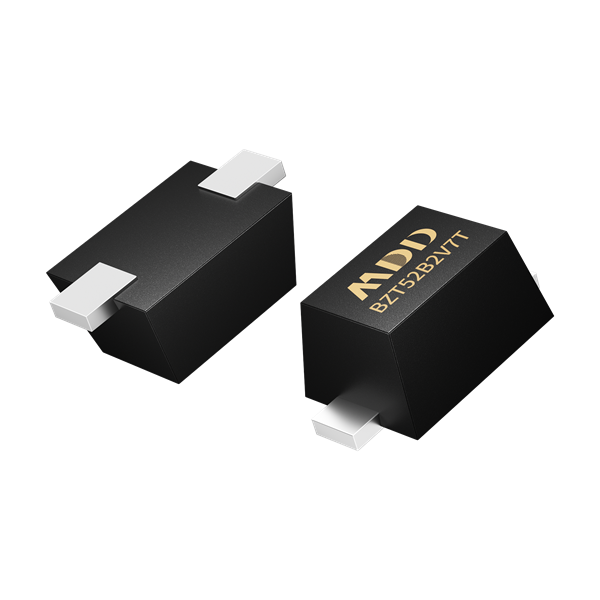

BZT52B2V7T

Status: Active

Package Type:

SOD-523

Packing Info:

3K/盘，180K/箱

Category:

Zener diodes

Part Number	Product status	Number of Functions	Package	Junction Temperature	Zener voltage VZ(V)	Zener voltage IZT(mA)	Dynamic resistance ZZT(Ω)	Maximum reverse leakage current TA=25℃ IR(μA)	Maximum reverse current IZM(mA)	Power dissipation PD(mW)	Tolerance	Maximum reverse leakage current TA=25℃ VR(V)
BZT52B2V7T	Active	Single	SOD-523	-205	2.7	5	100	20	-	150	±2%	1

Part Number

Product status

Number of
Functions

Package

Junction Temperature

Zener voltage
VZ(V)

Zener voltage
IZT(mA)

Dynamic resistance
ZZT(Ω)

Maximum reverse leakage current
TA=25℃
IR(μA)

Maximum reverse current
IZM(mA)

Power dissipation
PD(mW)

Tolerance

Maximum reverse leakage current
TA=25℃
VR(V)

BZT52B2V7T

Active

Single

SOD-523

-205

2.7

100

150

±2%

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
BZT52B2V7T	SOD-523	SOD-523		3K/盘，180K/箱

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

BZT52B2V7T

SOD-523

3K/盘，180K/箱
