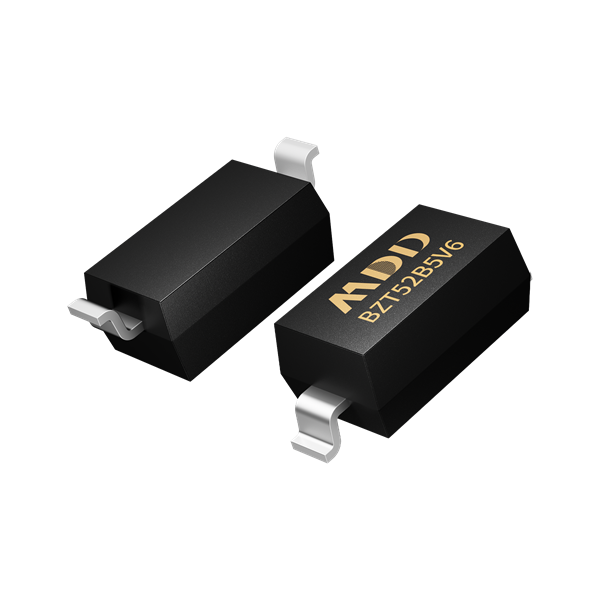

BZT52B5V6

Status: Active

Package Type:

SOD-123

Packing Info:

3K/盘，180K/箱

Category:

Zener diodes

Part Number	Product status	Number of Functions	Package	Junction Temperature	Zener voltage VZ(V)	Zener voltage IZT(mA)	Dynamic resistance ZZT(Ω)	Maximum reverse leakage current TA=25℃ IR(μA)	Maximum reverse current IZM(mA)	Power dissipation PD(mW)	Tolerance	Maximum reverse leakage current TA=25℃ VR(V)
BZT52B5V6	Active	Single	SOD-123	-205	5.6	5	80	1	-	500	±2%	2.5

Part Number

Product status

Number of
Functions

Package

Junction Temperature

Zener voltage
VZ(V)

Zener voltage
IZT(mA)

Dynamic resistance
ZZT(Ω)

Maximum reverse leakage current
TA=25℃
IR(μA)

Maximum reverse current
IZM(mA)

Power dissipation
PD(mW)

Tolerance

Maximum reverse leakage current
TA=25℃
VR(V)

BZT52B5V6

Active

Single

SOD-123

-205

5.6

500

±2%

2.5

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
BZT52B5V6	SOD-123	SOD-123		3K/盘，180K/箱

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

BZT52B5V6

SOD-123

3K/盘，180K/箱
