Product Center

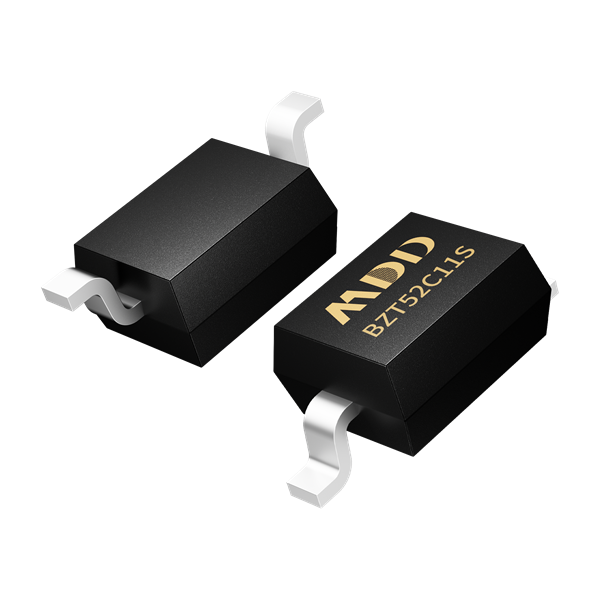

BZT52C11S

Status: Active

Package Type:

SOD-323

Packing Info:

3K/盘，180K/箱

Category:

Zener diodes

Part Number	Product status	Number of Functions	Package	Junction Temperature	Zener voltage VZ(V)	Zener voltage IZT(mA)	Dynamic resistance ZZT(Ω)	Maximum reverse leakage current TA=25℃ IR(μA)	Maximum reverse current IZM(mA)	Power dissipation PD(mW)	Tolerance	Maximum reverse leakage current TA=25℃ VR(V)
BZT52C11S	Active	Single	SOD-323	-205	11	5	30	0.1	-	200	±5%	8

Part Number

Product status

Number of
Functions

Package

Junction Temperature

Zener voltage
VZ(V)

Zener voltage
IZT(mA)

Dynamic resistance
ZZT(Ω)

Maximum reverse leakage current
TA=25℃
IR(μA)

Maximum reverse current
IZM(mA)

Power dissipation
PD(mW)

Tolerance

Maximum reverse leakage current
TA=25℃
VR(V)

BZT52C11S

Active

Single

SOD-323

-205

0.1

200

±5%

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
BZT52C11S	SOD-323	SOD-323		3K/盘，180K/箱

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

BZT52C11S

SOD-323

3K/盘，180K/箱
