Product Center

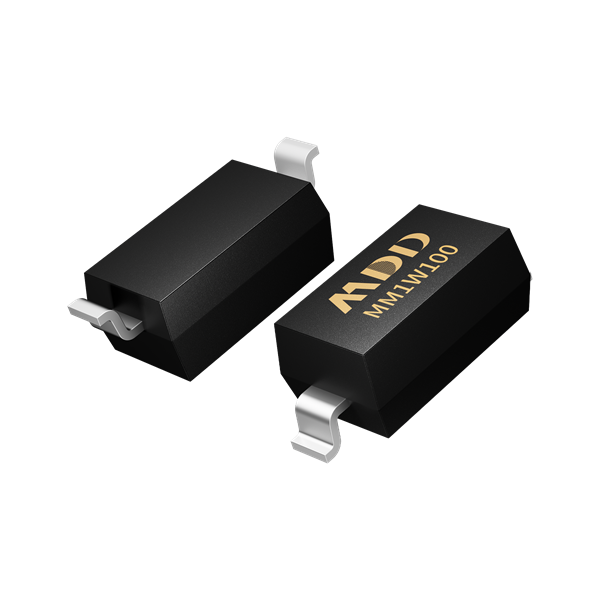

MM1W100

Status: Active

Package Type:

SOD-123

Packing Info:

3K/盘，180K/箱

Category:

Zener diodes

Part Number	Product status	Number of Functions	Package	Junction Temperature	Zener voltage VZ(V)	Zener voltage IZT(mA)	Dynamic resistance ZZT(Ω)	Maximum reverse leakage current TA=25℃ IR(μA)	Maximum reverse current IZM(mA)	Power dissipation PD(mW)	Tolerance	Maximum reverse leakage current TA=25℃ VR(V)
MM1W100	Active	Single	SOD-123	-205	100	2.5	350	1	9.5	1000	±5%	76

Part Number

Product status

Number of
Functions

Package

Junction Temperature

Zener voltage
VZ(V)

Zener voltage
IZT(mA)

Dynamic resistance
ZZT(Ω)

Maximum reverse leakage current
TA=25℃
IR(μA)

Maximum reverse current
IZM(mA)

Power dissipation
PD(mW)

Tolerance

Maximum reverse leakage current
TA=25℃
VR(V)

MM1W100

Active

Single

SOD-123

-205

100

2.5

350

9.5

1000

±5%

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
MM1W100	SOD-123	SOD-123		3K/盘，180K/箱

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

MM1W100

SOD-123

3K/盘，180K/箱
