Product Detail

Part Number	Product status	Number of Functions	Package	Type	V_GS(V)	ESD	Junction Temperature	B_VDSS(V)	I_D(A)	RDS(ON) (mΩ) VGS=10V Typ.	RDS(ON) (mΩ) VGS=10V Max.	RDS(ON) (mΩ) VGS=4.5V Typ.	RDS(ON) (mΩ) VGS=4.5V Max.	RDS(ON) (mΩ) VGS=2.5V Typ.	RDS(ON) (mΩ) VGS=2.5V Max.	VGS(th) (V) Min.	VGS(th) (V) Max.
MDDG04R02LG	Active	Single	PDFN5*6-8L	N	±20	N	-55 to 150℃	40	140	1.5	1.8	2.2	3	一	一	1	2.5

Packing Information

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
MDDG04R02LG	PDFN5*6-8L	PDFN5*6-8L		5K/盒 50K/箱

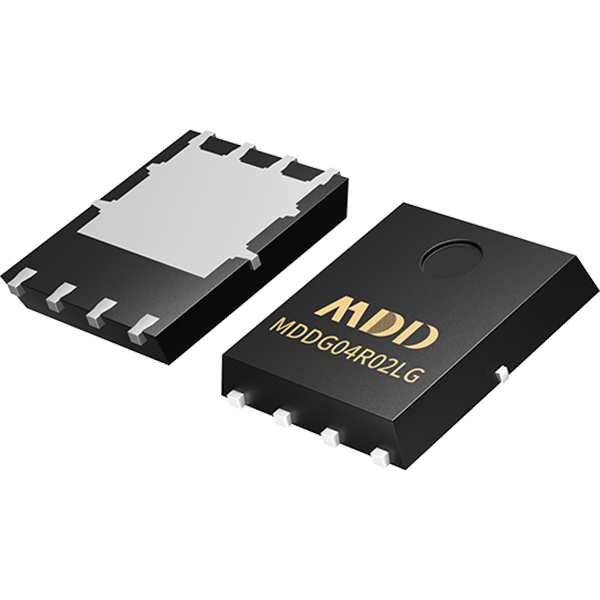

MDDG04R02LG
