Product Detail

Part Number	Product status	Number of Functions	Package	Type	V_GS(V)	ESD	Junction Temperature	B_VDSS(V)	I_D(A)	RDS(ON) (mΩ) VGS=10V Typ.	RDS(ON) (mΩ) VGS=10V Max.	RDS(ON) (mΩ) VGS=4.5V Typ.	RDS(ON) (mΩ) VGS=4.5V Max.	RDS(ON) (mΩ) VGS=2.5V Typ.	RDS(ON) (mΩ) VGS=2.5V Max.	VGS(th) (V) Min.	VGS(th) (V) Max.
MDDG10R20D	Active	Single	TO-252	N	±20	N	-55 to 150℃	100	30	13.8	20	17.4	26	一	一	1.4	2.5

Packing Information

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
MDDG10R20D	TO-252	TO-252		2.5K/盒 25K/箱

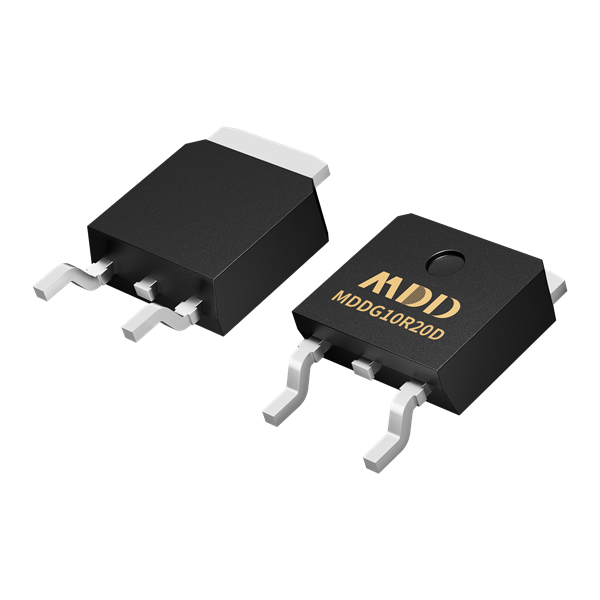

MDDG10R20D
