| Part Number | Product status | Number of Functions |
Peak Pulse Current IPP (A) | Package | Junction Temperature | Polarity | Peak Power Dissipation PPP(W) |
Reverse Stand-off Voltage VRWM (V) | Breakdown Voltage VBR(V) |
Maximun Clamping Voltage VC(V) | Maximum Reverse Leakage IR (μA) | Junction Capacitance CJ (pF) | ESD level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

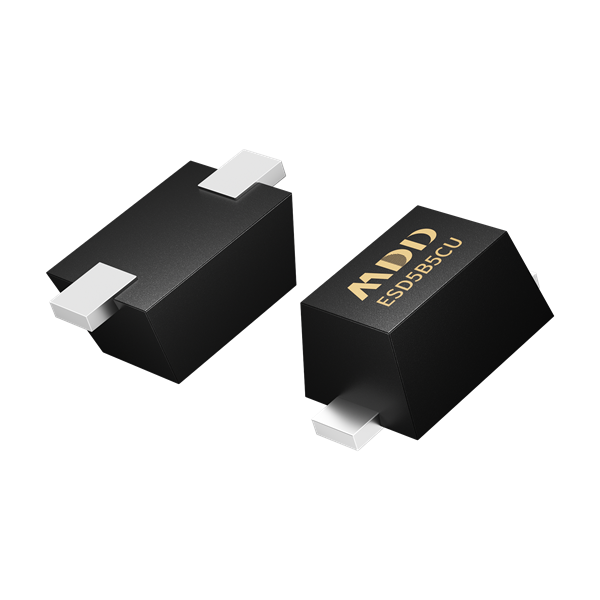

| ESD5B5CU | Active | 1 | 2 | SOD-523 | 150℃ | Bi | 35 | 5 | 5.6-9.4 | 14 | 2 | 3 | Con 8KV/Air15KV |
