Product Center

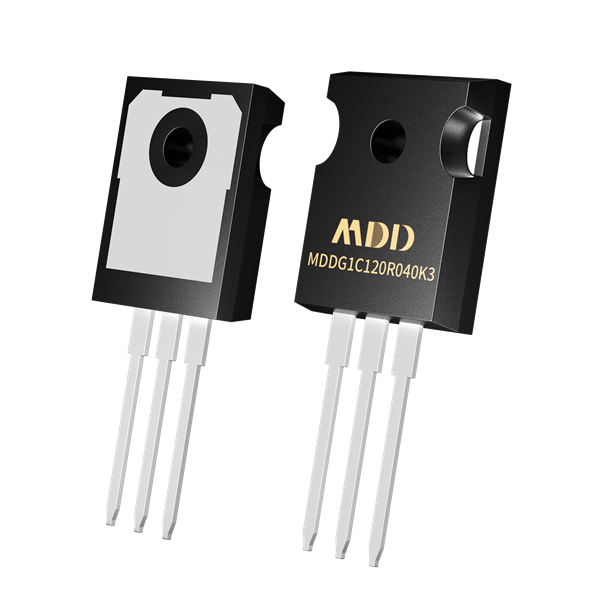

MDDG1C120R040K3

Status: Active

Package Type:

TO-247-3L

Packing Info:

Category:

SiC MOSFETs

Part Number	Product status	Number of Functions	Package	Type	V_GS(V)	Junction Temperature	I_D(A)	VGS(th) (V) Min.	VGS(th) (V) Max.	Bvdss (V)	RDS(ON) (mΩ) VGS=20/15V Typ.	RDS(ON) (mΩ) VGS=20/15V Max.
MDDG1C120R040K3	Active	Single	TO-247-3L	N	-0.4	-55 to 175℃	55	2	4	1200	44	52

Part Number

Product status

Number of
Functions

Package

Type

V_GS(V)

Junction Temperature

I_D(A)

VGS(th) (V)
Min.

VGS(th) (V)
Max.

Bvdss (V)

RDS(ON) (mΩ) VGS=20/15V
Typ.

RDS(ON) (mΩ) VGS=20/15V
Max.

MDDG1C120R040K3

Active

Single

TO-247-3L

-0.4

-55 to 175℃

1200

Part Number	Package Type	Packing Specification	Marking Code	Packing Info
MDDG1C120R040K3	TO-247-3L	TO-247-3L		/

Part Number

Package Type

Packing Specification

Marking Code

Packing Info

MDDG1C120R040K3

TO-247-3L
