| Part Number | Product status | Number of Functions |
Max.Reverse Voltage VRRM (V) |
Max.Fwd.Voltage TA=25℃ VF(V) |
Max.Fwd.Voltage TA=25℃ lF(A) |
Package | Junction Temperature | Maximum Reverse Leakage IR (μA) | Fwd.Current @Tc≤135℃lF(A) |
Peak Fwd. Surge Current Tc=25℃, tp=10ms, Half Sine Pulse IFSM(A) |
Total Capacitive Charge Qc(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|

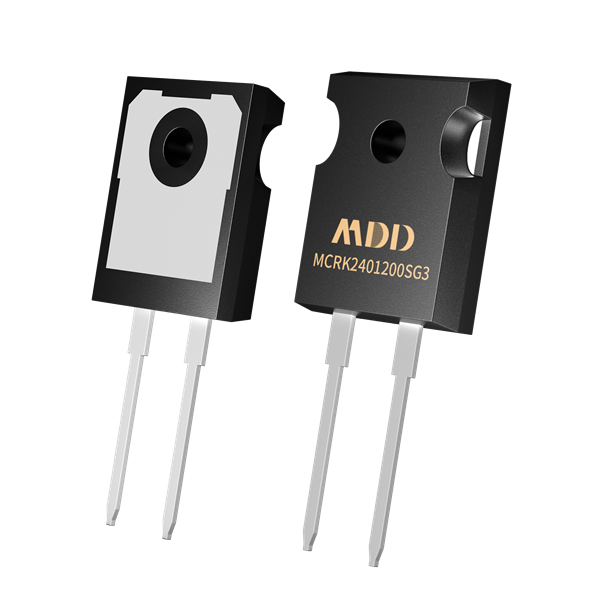

| MCRK2401200SG3 | Active | Single | 1200 | 1.8 | 40 | TO-247-2L | -55 to 175℃ | 300 | 70 | 247 | 167 |
